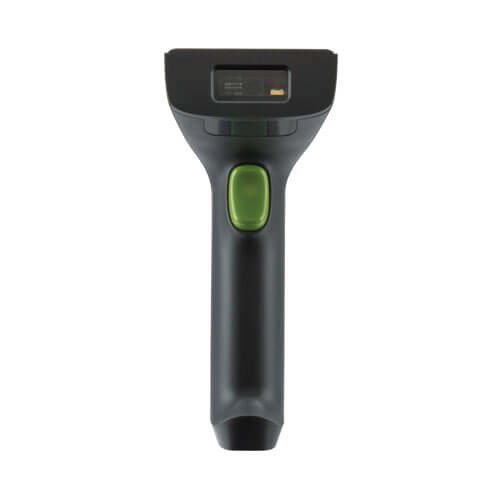

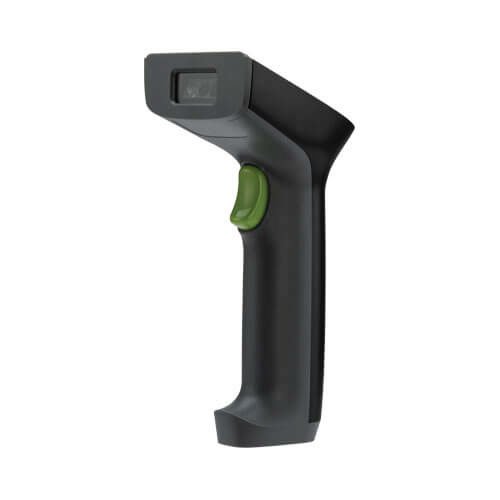

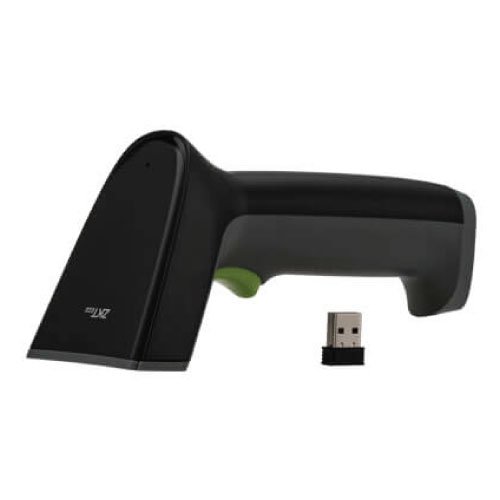

ZKB202S 2D Wireless Image Barcode Scanner

Physical Parameters

Dimensions (L*W*H): 167.3*70.5*81.5 (mm)

Weight: 170g

Voltage & Current: 5 VDC Operating: 190mA (Standby: 60mA)

Color: Black and Gray (White, optional)

Support Host Interface: 2.4GHz (2.4GHz+Bluetooth, optional)

User Indicators: Decode LED Indicator; Beeper (adjustable tone and volume)

Performance Parameters

Scan Mode: Manual Reading Mode

Light Source: Aiming Pattern: 650nm true red LED

Illumination: White LED

Scan Speed: 10cm/second

Field of View: Horizontal: 41°; Vertical: 31°

Image Sensor: 640*480 pixels

Minimum Print Contrast: 25%

Roll Tolerance: 0°-360°

Pitch Tolerance: ±60°

Skew Tolerance: ±55°

Minimum Element Resolution: Code 39: 4mil; Code 128: 4 mil; Data Matrix: 6 mil; QR Code: 6.7mil

Decode Capability: 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, ISBT 128, Code 39, Code93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7)
2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin
Code, etc.

Wireless Connectivity

Radio Range: 2.4GHz: 60m (Bluetooth: 15m)

Wireless Communication Mode: Synchronous Mode; Storage Mode

Battery Type: 18650 Li-ion Battery

Battery Capacity: 2000 mAh

Operating Time Per Full Charge: ≥12 Hours

Standby Time Per Full Charge: ≥4 Weeks

Charge Time(from Empty)/Standard USB: 5 Hours

Environmental Parameters

Operating Temperature: -20°C to 50°C

Storage Temperature: -40°C to 70°C

Humidity: 5% to 95% relative humidity, non-condensing

Electrostatic Discharge (ESD): ±2KV Direct; ±8KV Air

Ambient Light Immunity: 10000 lux Max

Decode Ranges

Symbology / Resolution: Near/Far

Code 39: 4 mil:  4 cm to 10 cm

Code 39: 5 mil: 4 cm to 13 cm

Code 39: 13 mil: 4 cm to 25 cm

Code 39: 20 mil: 6 cm to 30 cm

EAN-13: 13 mil: 3 cm to 25 cm

UPC-A: 13 mil: 3 cm to 25 cm

QR Code: 20mil: 5 cm to 20 cm

PDF417: 13mil: 5 cm to 20 cm
