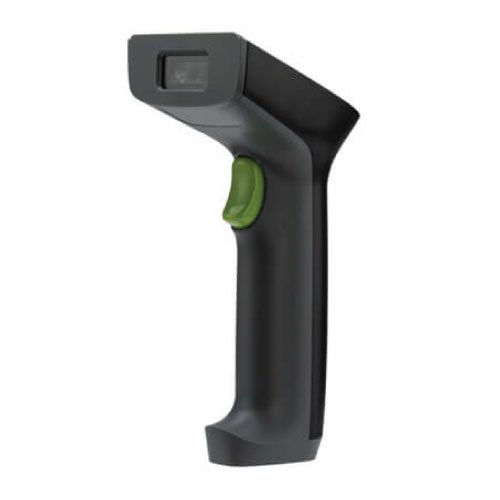

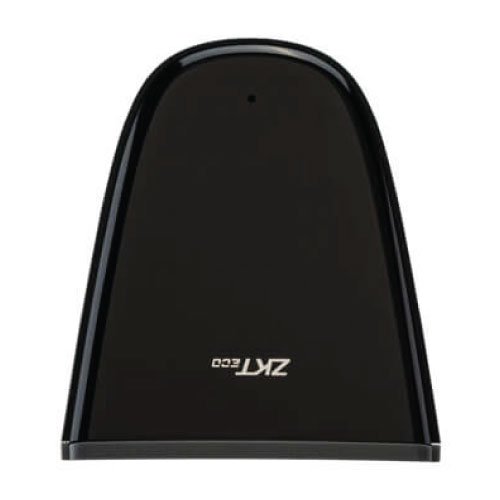

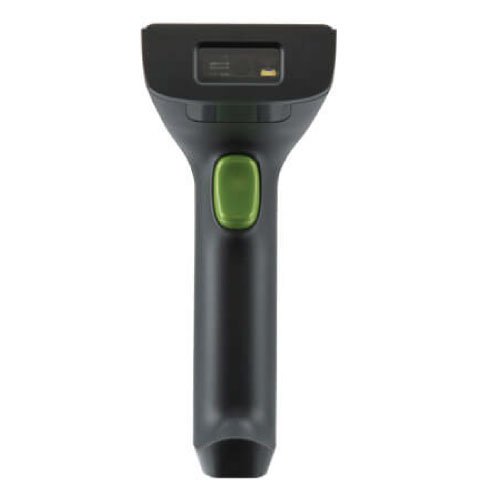

ZKB201S 2D Image Barcode Scanner
| Login to See Price | |
| Product Model: | False |
| Brand: | ZKTECO |
Key Features
- 1. Model: ZKB201S
- 2. Quickly Read All Common 1D/2D Barcodes
- 3. Scan Speed: 10cm/second, Manual Reading Mode
- 4. Connectivity Type: Standard USB (Optional RS232)
- 5. Aiming Pattern: 650nm true red LED
Physical Parameters
Dimensions (L*W*H): 167.3*70.5*81.5 (mm)
Weight: 122g
Voltage & Current: 5 VDC Operating: 180mA (Standby: 60mA)
Color: Black
Support Host Interface: Standard USB (Optional RS232)
User Indicators: Decode LED Indicator; Beeper (adjustable tone and volume)
Performance Parameters
Scan Mode: Manual Reading Mode
Light Source: Aiming Pattern: 650nm true red LED
Illumination: White LED
Scan Speed: 10 cm/s
Field of View: Horizontal: 41°; Vertical: 31°
Image Sensor: 640*480 pixels
Minimum Print Contrast: 25%
Roll Tolerance: 0° to 360°
Pitch Tolerance: ±60°
Skew Tolerance: ±55°
Minimum Element Resolution: Code 39: 4mil;Code 128: 4 mil; Data Matrix: 6 mil; QR Code: 6.7mil
Decode Capability: 1D: UPC-A, UPC-E, EAN-8, EAN-13,ISSN, ISBN, Code 128, ISBT 128, Code 39, Code93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7)
2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin
Code, etc.
Environmental Parameters
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity: 5% to 95% relative humidity, non-condensing
Electrostatic Discharge (ESD): ±2KV Direct; ±4KV Air
Ambient Light Immunity: 10000 Lux Max
Decode Ranges
Symbology / Resolution: Near/Far
Code 39: 4 mil: 4 cm to 10 cm
Code 39: 5 mil: 4 cm to 13 cm
Code 39: 13 mil: 4 cm to 25 cm
Code 39: 20 mil: 6 cm to 30 cm
EAN-13: 13 mil: 3 cm to 25 cm
