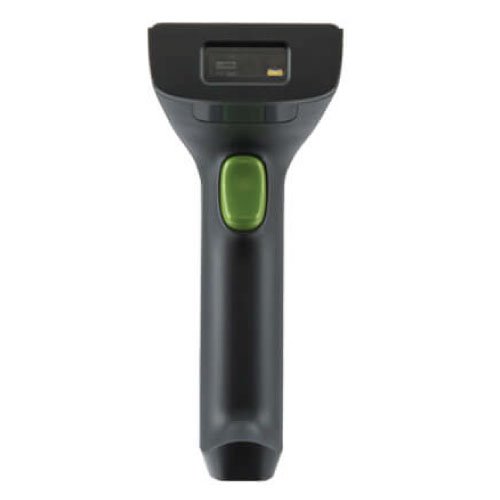

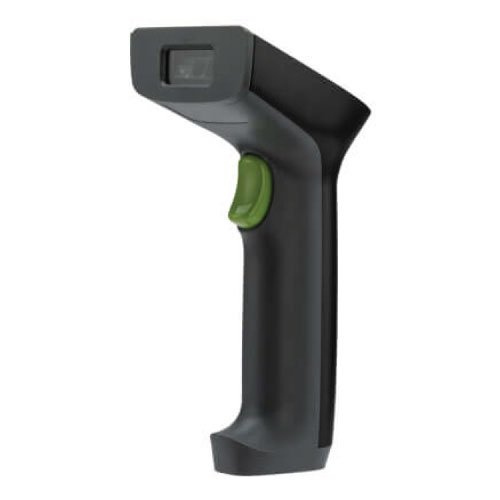

ZKB102S 1D CCD Barcode Scanner
| Login to See Price | |
| Product Model: | False |
| Brand: | ZKTECO |
Key Features
· Quickly read all common 1D barcodes
· Compatible with various LCD and OLED mobile phone screen codes and paper product codes
· Accurate identification when multiple barcodes coexist
· Plug and play, easy to set up
· Ergonomic design, more convenient operation, more comfortable grip
Physical Parameters
Dimensions (L*W*H): 167.3*70.5*81.5 (mm)
Weight: 120g
Voltage & Current: 5 VDC Operating: 120mA (Standby: 30mA)
Color: Black and Gray (White, optional)
Support Host Interface: USB ( RS-232, optional)
User Indicators: Decode LED Indicator; Beeper (adjustable tone and volume)
Performance Parameters
Scan Mode: Manual Reading Mode
Light Source: 620nm Red light
Scan Speed: 50ms/time
Minimum Print Contrast: 25%
Roll Tolerance: ±30°
Pitch Tolerance: ±60°
Skew Tolerance: ±60°
Decode Capability: 1D : UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, ISBT 128, Code 39, Code 93, Code 11,Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7)
Environmental Parameters
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity: 5% to 95% relative humidity, non-condensing
Electrostatic Discharge (ESD): ±2KV Direct; ±8KV Air
Ambient Light Immunity: 10000 Lux Max
Decode Ranges
Symbology / Resolution: Near/Far
Code 39: 4 mil: 3 cm to 10 cm
Code 39: 5 mil: 3 cm to 13 cm
Code 39: 13 mil: 4 cm to 30 cm
EAN-13: 13 mil: 3 cm to 30 cm
UPC-A: 13 mil: 3 cm to 30 cm
