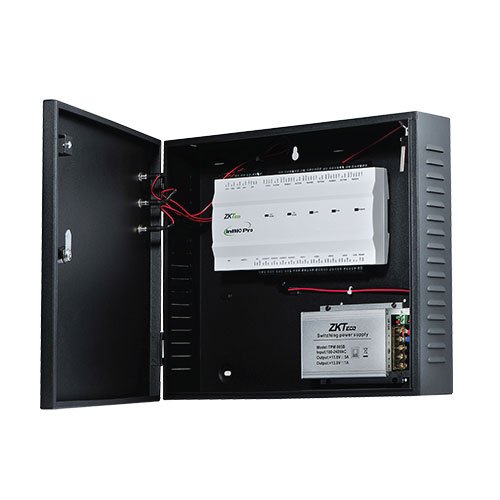

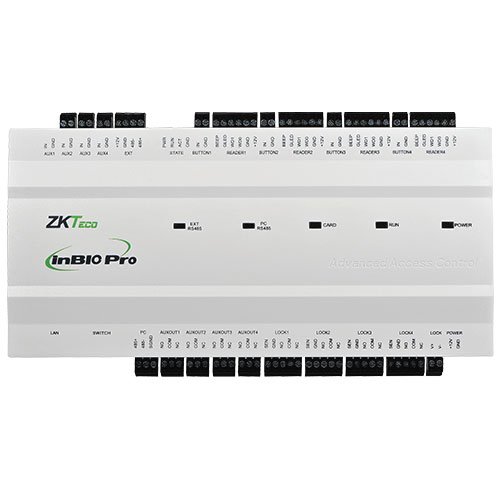

InBio-460 Pro for Door Controller
| Login to See Price | |
| Product Model: | InBio-460 Pro |
| Brand: | ZKTECO |
Key Features
- 1. WiFi module (external) optional
- 2. TCP/IP and RS-485 communication
- 3. Aux RS485 for fingerprint reader
- 4. Wiegand interface for RFID reader
Brand: ZKTECO
Product Model: InBio-460 Pro
Return & Warranty
Market Ratings
Ship On Time
99%
Chat Response
100%
Specification
| Model | InBio-160 Pro | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of doors controller | 4 Door | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Numbers of readers supported | 12 (8 RS-485 Reader, 4 26-bit wiegand reader) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Types of readers supported | 26-bit Wiegand and RS485 FR Series Reader | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of Inputs | 12( 4 Exit button, 4 Door Status, 4 AUX) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Number of Outputs | 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card holders Capacity | 60,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Fingerprint Capacity | 20000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Log Events Capacity | 100,000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication | TCP/IP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package Dimension | 350(L)×90(H)×300(W)mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package Weight | 3.7kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU | 32 bit 1.2GHz CPU | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 128MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Flash Memory | 256MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | 9.6V-14.4V DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temp | 0-45 °C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 20% to 80% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
