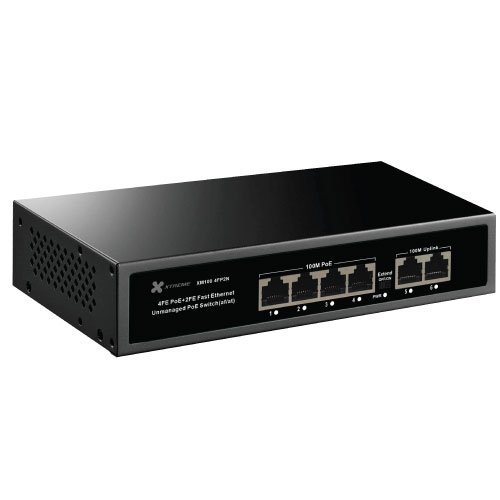

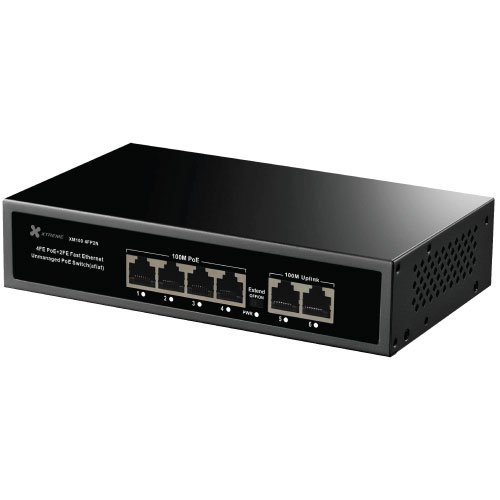

XTREME X100-4FP2N UNMANAGED 4*10/100M PoE + 2*100M RJ45 UPLINK PoE SWITCH, 1Y WARRANTY

5.0
0 reviews
Write a review
Login to See Price
Product Model: X100-4FP2N
Brand: XTREME

Key Features

  • 4*10/100Mbps PoE+ ports, 2*10/100Mbps RJ45 Uplink
  • Support IEEE802.3af/at
  • Support restrain network storm, 1-4 port support VLAN mode
  • Support Max Transmission distance up to 250m
  • All RJ45 port supported by MDI/MDIX auto flip and auto-negotiation
  • Built-in power supply
  • Maximum power of single PoE port: 30 W
  • Total power: 65W
  • Adopts store-and-forward architecture
  • Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall mounting
  • Support lightning protection 4kV
  • View More Info

    • Brand: XTREME
    Product Model: X100-4FP2N
    -
    +
    Delivery Options
    Within Bangladesh
    CHANGE
    Standard Delivery
    Get within 3 days
    120৳
    Cash on Delivery
    Return & Warranty
    Authentic
    Easy Return
    Warranty Services
    Market Ratings
    99%
    Ship On Time
    99%
    Chat Response
    100%
    Place Order
    • Specification
    • Description
    • Reviews (0)
    • Tags
    Specification

    Item

    Description

    Power

    Power Adapter Voltage

    AC 110V-240V

    Consumption

    65W

    Network Connector

    Network Port

    PoE Ethernet Port

    1～4 Port: 10/100Mbps

    RJ45 Ethernet port

    Uplink Port: 10/100Mbps

    Transmission Distance

    1～4 Port: 100Mbps:0~100m;

    10Mbps: 0~250m;

    Uplink Port: 0 ~ 100m

    Transmission Medium

    Cat5/5e/6 standard network cable

    Network Switch

    Network Standard

    IEEE802.3/802.3u,

    IEEE802.3x,IEEE802.ab

    Switching Capacity

    1.2Gbps

    Packet Buffer Memory

    1Mbits

    Throughput

    0.8928Mpps

    MAC Table

    1K

    Packet Forwarding rate

    10Mbps:14880pps/port                        100Mbps: 148800pps/port

    Power Over Ethernet

    PoE Standard

    IEEE 802.3af/at

    PoE Power Supply

    12+ ,36 - , 4 core power supply

    PoE Power

    af=15.4W, at=30W for each port

    RJ45 port

    Port Function

    Power priority mechanism, fast and forward,

    MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode

    LED Indicator

    LED Indicator

    PoE Status Indicator;

    Power indicator; Extend

    Environmental

    Working temperature

    0℃~+55℃

    Relative Humidity

    20%~95%

    Storage temperature

    -20℃~+70℃

    Mechanical

    Dimension (L×W×H)

    190mm*125mm*38mm

    Color

    Black

    Installation

    Wall mounting/Desktop

    Weight

    0.70 kg

    Stability

    MTBF

    >50,000h
