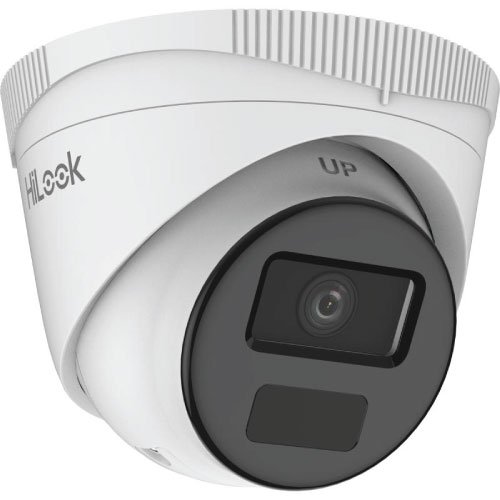

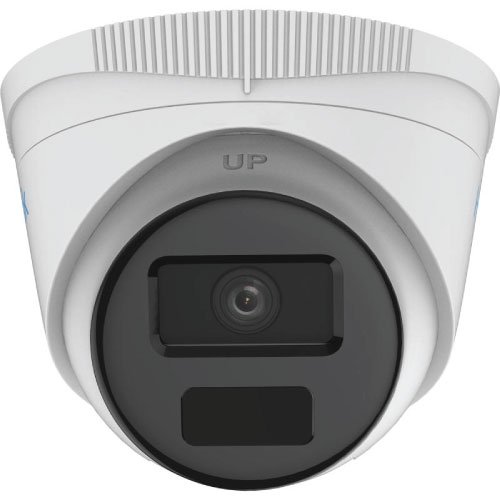

Hikvision HiLook IPC-T221H-LC 2 MP Fixed WDR Varifocal IP Dome Camera, 30 Meter IR Distance, Lens 2.8 MM

Camera

• Image Sensor1/2.9" Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV


  2.8 mm, horizontal FOV 94°, vertical FOV 51°, diagonal FOV 112°

  4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°

• Lens MountM12
• Iris TypeFixed
• ApertureF2.2

DORI

• DORI


  2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m

  4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

• Supplement Light TypeIR
• Supplement Light RangeUp to 20 m
• Smart Supplement LightYes
• IR Wavelength850 nm

Video

• Main Stream


  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream


  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression


  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR

Network

• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
• Simultaneous Live ViewUp to 6 channels
• APIISAPI,SDK
• ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
• User/Host


  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200
• Web Browser


  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR)Digital WDR
• SNR≥ 52 dB
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event Motion detection, exception
• LinkageNotify surveillance center

General

• Power


  12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 6.5 W

• MaterialPlastic
• DimensionØ112 mm × 88.4 mm (Ø4.4" × 3.5")
• Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
• Approx. 280 g (0.6 lb.)
• With Package WeightApprox. 450 g (1.0 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

Approval

• EMC


  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

• Safety


  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment


  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
