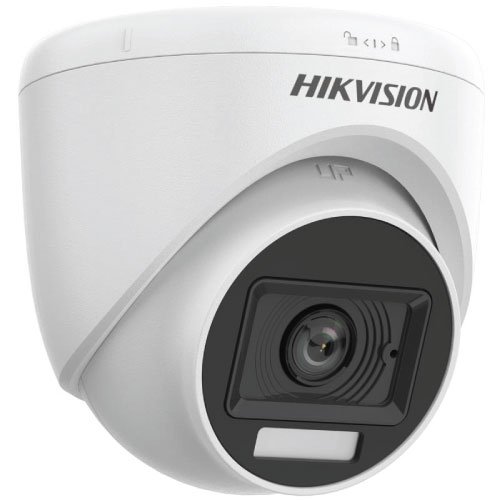

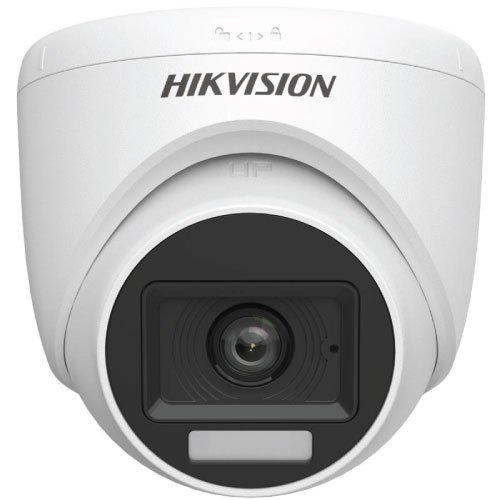

Hikvision DS-2CE76G0T-LPFS/S 3 MP Dual Light Audio Dome Camera, 20 Meter IR Distance, Lens 2.8 MM
| Login to See Price | |
| Product Model: | DS-2CE76G0T-LPFS/S |
| Brand: | HIKVISION |
Key Features
- 1. High quality imaging with 2K, 2304 × 1296 resolution
- 2. Smart-Hybrid Light,optimize your security with flexible lighting options
- 3. Up to 20 m IR distance for bright night imaging
- 4. Up to 20 m white light distance for bright night imaging
- 5. High quality audio with audio over coaxial cable, built-in mic
- 6. One port for four switchable signals (TVI/AHD/CVI/CVBS）
Camera
Image Sensor: 2K CMOS
Max. Resolution: 2304 (H) × 1296 (V)
Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & Night: ICR
Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System: PAL/NTSC
Lens
Lens Type: 2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV:
2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 129°
3.6 mm, horizontal FOV: 89°, vertical FOV: 47°, diagonal FOV: 107°
Lens Mount: M12
Microphone
Pickup Distance: In a radius of up to 5 m
Amount: 1
Illuminator
Supplement Light Range:
IR : Up to 20 m
White Light : Up to 20 m
Supplement Light Type: Smart,IR,White Light
Image Settings: Brightness, Sharpness, Smart IR
Frame Rate:
TVI: 2K @20fps, 1080P @25fps/30fps
AHD: 1080P @25fps/30fps
CVI: 1080P @25fps/30fps
CVBS: PAL/NTSC
Wide Dynamic Range (WDR): Digital WDR
Image Enhancement: DWDR/BLC/HLC/Global
White Balance: Auto/Manual
AGC: Yes
Day/Night Mode: Auto/Color
Interface
Video Output: Switchable TVI/AHD/CVI/CVBS
General
Power:
12 VDC ± 25%, max. 3.3 W,
*You are recommended to use one power adapter to supply the power for one camera.
Material: Plastic
Dimension: 84.6 mm × Ø85.02 mm (3.33" × Ø3.35")
Weight: Approx. 155 g (0.34 lb.)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
Communication: HIKVISION-C
Language: English
