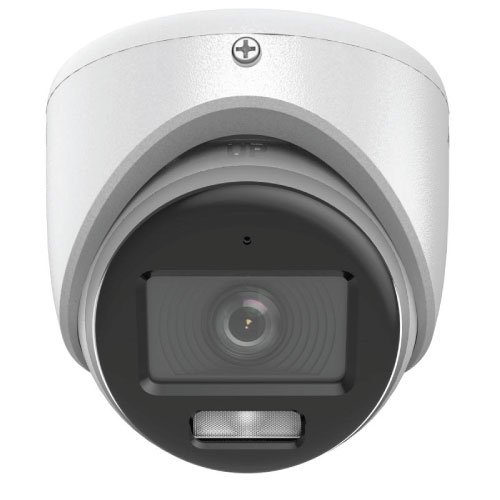

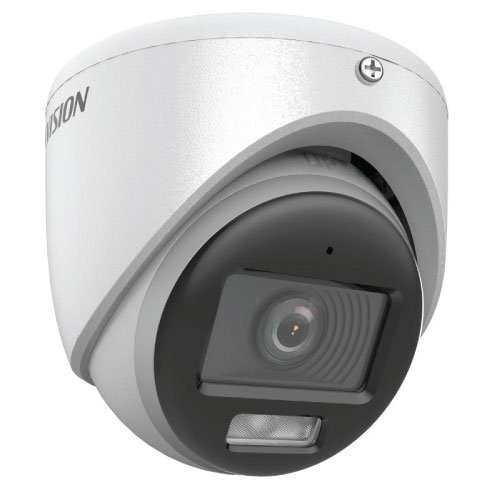

Hikvision DS-2CE70KF0T-LMFS 5 MP ColorVu 3K Smart Hybrid Light Fixed Turret Audio Dome Camera, 20 Meter IR Distance, Lens 2.8 MM
| Login to See Price | |
| Product Model: | DS-2CE70KF0T-LMFS |
| Brand: | HIKVISION |
Key Features
- Model: DS-2CE70KF0T-MFS
- 5MP, 3K, 2960 × 1665 resolution
- 24/7 color imaging with F1.0 aperture
- Lens Type: 2.8 Mm, Fixed Focal Lens
- Up to 20m white light distance for bright night imaging
Brand: HIKVISION
Product Model: DS-2CE70KF0T-LMFS
Return & Warranty
Market Ratings
Ship On Time
99%
Chat Response
100%
Specification
| General | ||
| Dimensions | Φ 85.1 mm × 77.62 mm (Φ 3.35" × 3.05") | |
| Weight | Approx. 328 g (0.72 lb.) | |
| Pan/Tilt/Rotation | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° | |
| Operating Conditions | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, Max. 2.5 W | |
| Camera | ||
| Image Sensor | 5MP CMOS | |
| Effective Pixels | 2960 (H) × 1665 (V) | |
| Minimum Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light | |
| IR Distance | 20 m | |
| Lens | ||
| Lens Type | 2.8 mm fixed focal lens | |
| Mount Type | M12 | |
| Focal Length | 2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° | |
| Max Aperture | F1.0 aperture | |
| Angle of View | horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96° | |
| Video | ||
| Frame Rate | TVI: 5 MP@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC |
|
| Day/Night | Color | |
| Interface | ||
| Audio Interface | High-quality audio with audio over coaxial cable, built-in mic |
|
| Warranty | ||
| Warranty | 01 year warranty | |
