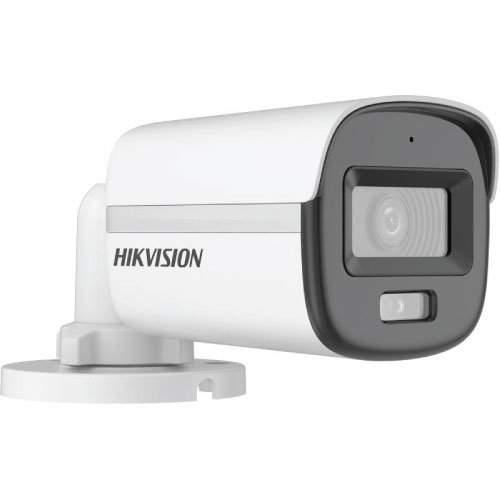

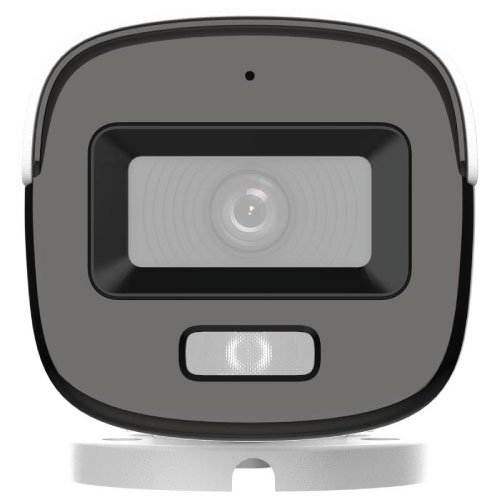

Hikvision DS-2CE10KF0T-FS 5 MP ColorVu Audio Bullet Camera, 20 Meter IR Distance, Lens 3.6 MM

Camera

• Image Sensor3K CMOS
• Signal SystemPAL/NTSC
• Max. Resolution2960 (H) × 1665 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night24/7 Color Imaging
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens

• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV:


  2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°

  3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°

• Lens MountM12

Illuminator

• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 20 m


• Frame Rate:


  TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps

  AHD: 5 MP@20fps, 4 MP@25fps/30fps

  CVI: 4 MP@25fps/30fps

  CVBS: PAL/NTSC

• Wide Dynamic Range (WDR)Digital WDR
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Day/Night ModeColor
• White BalanceAuto/Outdoor/Global/Manual
• Image EnhancementDWDR, BLC, HLC, Global, HLS
• Noise Reduction2D DNR
• Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS
• AlarmSolid Light Alarm (White Light)
• AudioBuilt-in mic

General

• LanguageEnglish
• Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• MaterialMetal
• CommunicationHIKVISION-C
• Dimension161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
• Approx. 404 g (0.89 lb.)
• Power:


  12 VDC ± 25%, Max. 2.5 W,

  *You are recommended to use one power adapter to supply the power for one camera.

Approval

• ProtectionIP67
