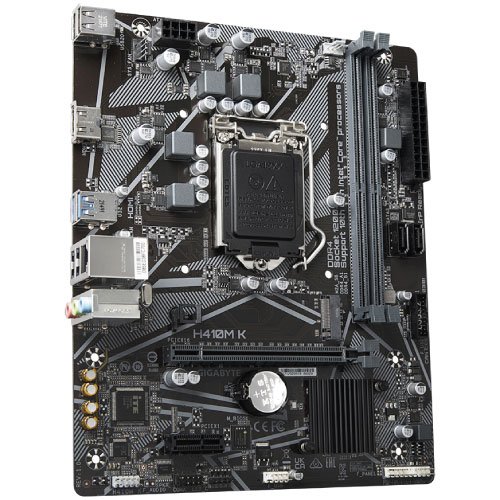

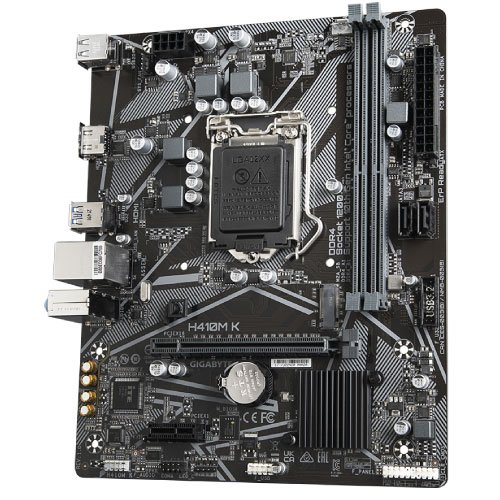

GIGABYTE INTEL® # H410M K, LGA1200, NVMe PCIe Gen3 x4 2280 M.2 Connector, 2 x DDR4 DIMM, 2 x SATA 6Gb/s

• CPU:
  1. LGA1200 package: Support 10th Generation Intel^® Core™ i9 processors/ Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors
  2. L3 cache varies with CPU
• Chipset: Intel^® H470 Express Chipset
• Memory:
  1. 10th Generation Intel^® Core™ i9/i7 processors:
     Support for DDR4 2933/2666/2400/2133 MHz memory modules
  2. 10th Generation Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
     Support for DDR4 2666/2400/2133 MHz memory modules
  3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.3.Integrated Graphics Processor-Intel^® HD Graphics support:
• Audio:
  1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
• LAN: Realtek^® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots:
  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

  Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Storage Interface:
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
  2. 2 x SATA 6Gb/s connectors

  Support for RAID 0, RAID 1, and RAID 5
  Intel^® Optane™ Memory Ready
• USB:
  Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors:
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x RGB LED strip header
  6. 1 x M.2 Socket 3 connector
  7. 2 x SATA 6Gb/s connectors
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 1 x USB 2.0/1.1 header
  12. 1 x serial port header
  13. 1 x Clear CMOS jumper
• Back Panel Connectors:
  1. 1 x HDMI port
  2. 2 x USB 3.2 Gen 1 ports
  3. 4 x USB 2.0/1.1 ports
  4. 1 x RJ-45 port
  5. 3 x audio jacks
• I/O Controller: iTE^® I/O Controller Chip
• H/W Monitoring:
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
• BIOS:
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features:
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     Ambient LED
     EasyTune
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install
• Bundled Software:
  1. Norton^® Internet Security (OEM version)
  2. LAN bandwidth management software
• Operating System:
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Form Factor: Micro ATX Form Factor; 22.6cm x 18.5cm
