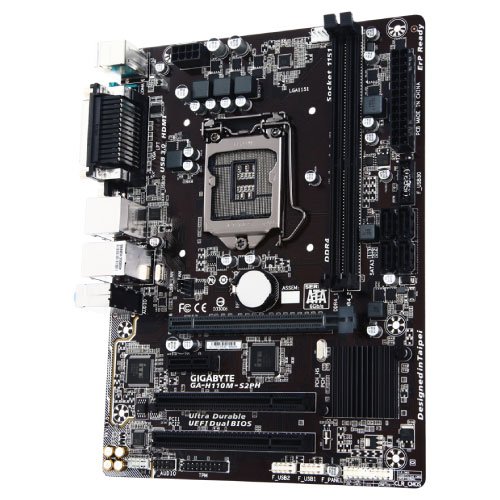

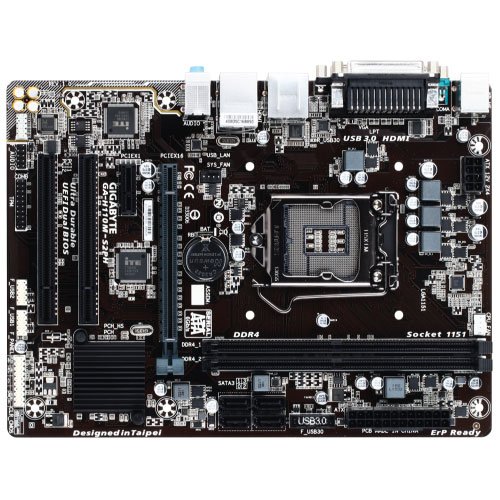

GIGABYTE Intel® # GA-H110M-S2PH, LGA1151, Audio Noise Guard with LED Trace Path Lighting, 2 x DDR4 DIMM, 4 x SATA 6Gb/s

• CPU:
  1. Support for 7^th/6^th Generation Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
     * For 7^th Generation Intel^® Core™ processors support need to update the latest BIOS.
  2. L3 cache varies with CPU
• Chipset: Intel^® H110 Express Chipset
• Memory:
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
     * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 2400/2133 MHz memory modules
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
• Onboard Graphics:
  1. Integrated Graphics Processor - Intel^® HD Graphics support:
     1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
     1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
     * Support for HDMI 1.4 version.
  2. Maximum shared memory of 1024 MB
• Audio:
  1. Realtek^® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
• LAN: Realtek^® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots:
  1. 1 x PCI Express x16 slot, running at x16
     (The PCI Express x16 slots conform to PCI Express 3.0 standard.)
  2. 1 x PCI Express x1 slot
     (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
  3. 2 x PCI slots
• Storage Interface:
  Chipset:

  1. 4 x SATA 6Gb/s connectors
• USB:
  Chipset:

  1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors:
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 1 x system fan header
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 1 x S/PDIF Out header
  9. 1 x USB 3.0/2.0 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x serial port header
  12. 1 x Trusted Platform Module (TPM) header
  13. 1 x Clear CMOS jumper

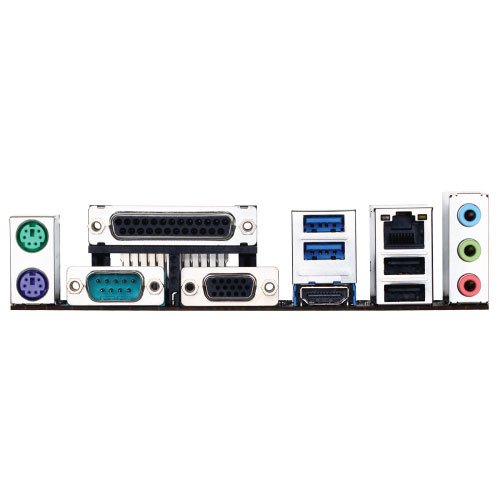

• Back Panel Connectors:
  1. 1 x PS/2 mouse port
  2. 1 x PS/2 Keyboard port
  3. 1 x D-Sub port
  4. 1 x parallel port
  5. 1 x serial port
  6. 1 x HDMI port
  7. 2 x USB 3.0/2.0 ports
  8. 2 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 3 x audio jacks (Line In, Line Out, Mic In)
• I/O Controller: iTE^® I/O Controller Chip
• H/W Monitoring:
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS:
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features:
  1. Support for APP Center
     * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
     3D OSD
     @BIOS
     AutoGreen
     Cloud Station
     EasyTune
     Fast Boot
     Smart TimeLock
     Smart Keyboard
     Smart Backup
     System Information Viewer
     USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
  4. Support for Smart Switch
• Bundled Software:
  1. Norton^® Internet Security (OEM version)
  2. cFosSpeed
• Operating System:
  1. Windows^® 10 64-bit (for 7^th Generation Intel^® Processors)
  2. Windows^® 10 64-bit / Windows^® 8.1 64-bit / Windows^® 7 32-bit / 64-bits (for 6^th Generation Intel^® Processors)
     * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
• Form Factor: Micro ATX Form Factor; 24.4cm x 18.0cm
