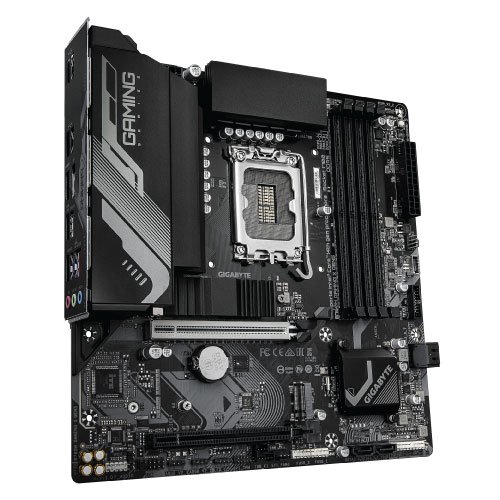

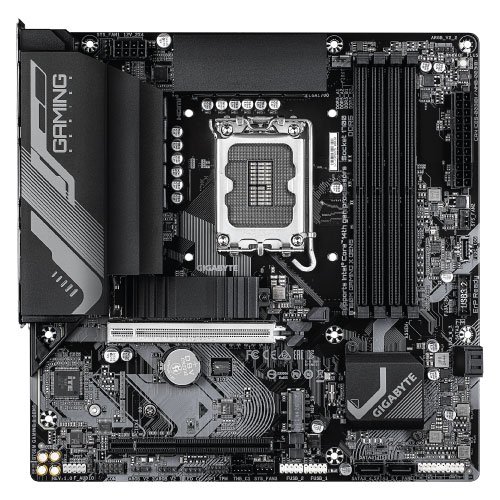

GIGABYTE INTEL® # B760M GAMING X GEN5 DDR5, LGA1700, 4 x DDR5 DIMM, 4 x SATA 6Gb/s

5.0
0 reviews
Write a review
Login to See Price
Product Model: GIGABYTE INTEL® # B760M GAMING X GEN5 DDR5
Brand: GIGABYTE

Key Features

  • Model: B760M GAMING X GEN5 DDR5
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7600(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX210
  • View More Info

    • Brand: GIGABYTE
    Product Model: GIGABYTE INTEL® # B760M GAMING X GEN5 DDR5
    -
    +
    Delivery Options
    Within Bangladesh
    CHANGE
    Standard Delivery
    Get within 3 days
    120৳
    Cash on Delivery
    Return & Warranty
    Authentic
    Easy Return
    Warranty Services
    Market Ratings
    99%
    Ship On Time
    99%
    Chat Response
    100%
    Place Order
    • Specification
    • Description
    • Reviews (0)
    • Tags
    Specification
    • CPU:
      LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
      L3 cache varies with CPU
    • Chipset: Intel® B760 Express Chipset
    • Memory:
      Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
      4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
      Dual channel memory architecture
      Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      Support for Extreme Memory Profile (XMP) memory modules
    • Onboard Graphics:
      Integrated Graphics Processor-Intel® HD Graphics support:
      - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.


      - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

      * Support for DisplayPort 1.2 version and HDCP 2.3


      (Graphics specifications may vary depending on CPU support.)
    • Audio:
      Realtek® Audio CODEC
      High Definition Audio
      2/4/5.1/7.1-channel

      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


      Support for S/PDIF Out
    • LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    • Expansion Slots:
      CPU:
      - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

      * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


      Chipset:
      - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
    • Storage Interface:
      CPU:
      - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
      Chipset:
      - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
      - 4 x SATA 6Gb/s connectors
      RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    • USB:
      Chipset:
      - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
      - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
      - 1 x USB 2.0/1.1 port on the back panel
      Chipset+2 USB 2.0 Hubs:
      - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    • Internal I/O Connectors:
      1 x 24-pin ATX main power connector
      1 x 8-pin ATX 12V power connector
      1 x CPU fan header
      3 x system fan headers
      3 x addressable LED strip headers
      1 x RGB LED strip header
      2 x M.2 Socket 3 connectors
      4 x SATA 6Gb/s connectors
      1 x front panel header
      1 x front panel audio header
      1 x S/PDIF Out header
      1 x USB Type-C® header, with USB 3.2 Gen 2 support
      1 x USB 3.2 Gen 1 header
      2 x USB 2.0/1.1 headers
      2 x Thunderbolt™ add-in card connectors
      1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
      1 x serial port header
      1 x Q-Flash Plus button
      1 x reset jumper
      1 x Clear CMOS jumper

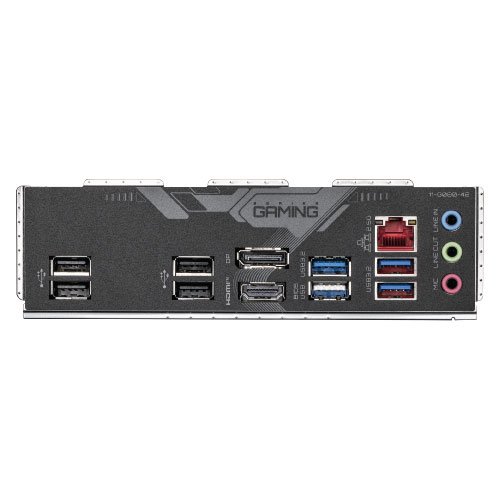

    • Back Panel Connectors:
      3 x USB 3.2 Gen 1 ports
      5 x USB 2.0/1.1 ports
      1 x HDMI port (Note)
      1 x DisplayPort (Note)
      1 x RJ-45 port
      3 x audio jacks

      (Note) Actual support may vary by CPU.
    • I/O Controller: iTE® I/O Controller Chip
    • H/W Monitoring:
      Voltage detection
      Temperature detection
      Fan speed detection
      Water cooling flow rate detection
      Fan fail warning
      Fan speed control

      * Whether the fan speed control function is supported will depend on the fan you install.

    • BIOS:
      1 x 256 Mbit flash
      Use of licensed AMI UEFI BIOS
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features:
      Support for GIGABYTE Control Center (GCC)

      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


      Support for Q-Flash
      Support for Q-Flash Plus
      Support for Smart Backup
    • Bundled Software:
      Norton® Internet Security (OEM version)
      LAN bandwidth management software
    • Operating System:
      Support for Windows 11 64-bit
      Support for Windows 10 64-bit
    • Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
