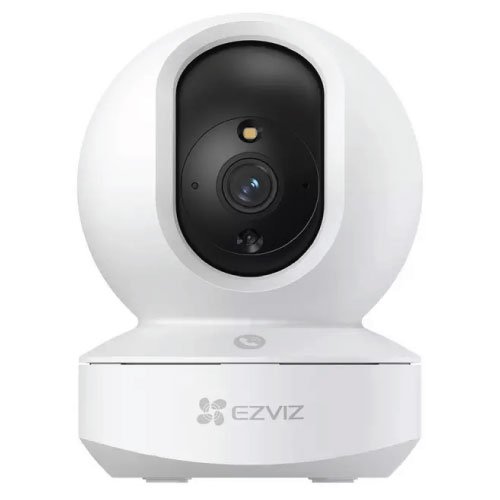

EZVIZ CS-TY1 Pro (5MP) Full Colour Multifunctional Two-Way Audio, Patrol Mode, Power Type-C, Support Micro SD card (Max. 512G)
| Login to See Price | |
| Product Model: | EZVIZ CS-TY1 Pro (5MP) |
| Brand: | EZVIZ |
Key Features
- 1. Model: CS-TY1 Pro 5MP
- 2. Image Sensor: 1/3" Progressive Scan CMOS
- 3. Video Resolution: 2592 x 1944p
- 4. IR Night Vision Distance: Up to 10 m (33 ft)
- 5. Smart Human Motion/Shape Detection
Brand: EZVIZ
Product Model: EZVIZ CS-TY1 Pro (5MP)
Return & Warranty
Market Ratings
Ship On Time
99%
Chat Response
100%
Specification
| Camera | |
|---|---|
| Image sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6; Viewing angle: 80° (Horizontal), 43° (Vertical), 90° (Diagonal) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.264/H.265 |
| Video Bit Rate | Adaptive bit rate. |
| Image | |
| Max. Resolution | 2592 x 1944 |
| Frame Rate | Self-Adaptive during network transmission |
| Network | |
| Smart Alarm | Motion Detection, Human Shape Detection, Human Shape Tracking, Loud Noise Detection, Patrol Mode |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Interface | |
| Storage | Micro SD card slot (Max. 512G) |
| Power | Type-C |

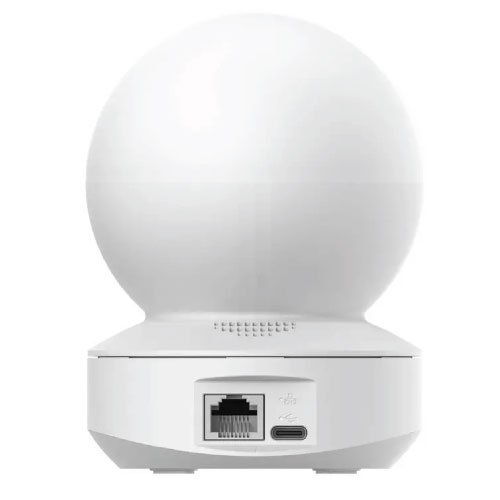

| Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
| Wi-Fi | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Output Power(EIRP) | 19 dBm |
| Antenna Gain | 1.9 dBi |
| General | |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/1A |
| Power Consumption | MAX. 5W |
| IR Range | MAX. 10 meters(32.81ft) |

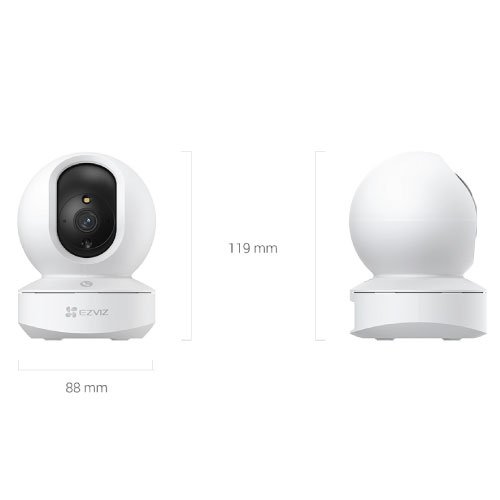

| Dimensions | 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”) |
| Packaging Dimensions | 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”) |
| Bare Weight | 218g (0.48lb) |
