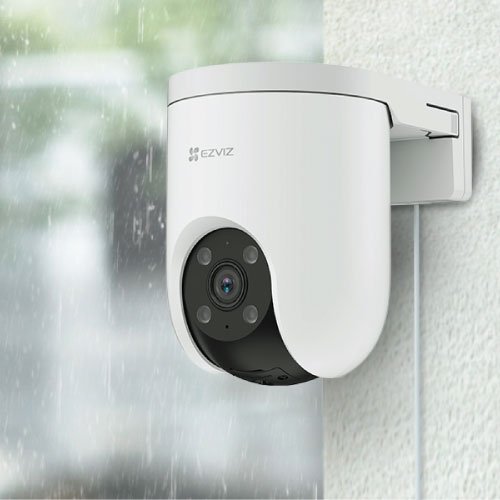

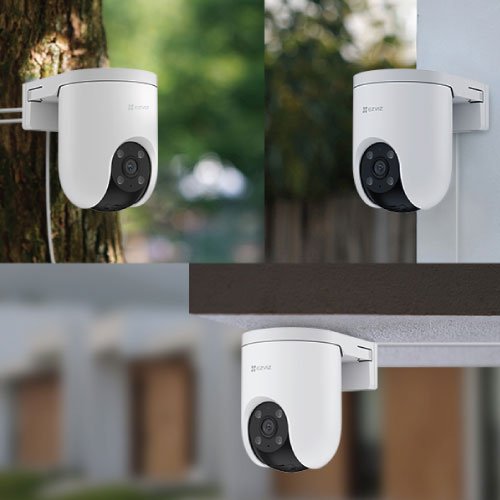

EZVIZ CS-H8C (4G) 3MP Pan & Tilt 4G Camera, Color Night Vision, Supports 4G Network Connectivity, Supports MicroSD Card Storage (up to 512 GB),Lens 4 MM
| Login to See Price | |
| Product Model: | CS-H8C (4G) |
| Brand: | EZVIZ |
Key Features
- Model: CS-H8C (4G)
- Image Sensor: F1.6@1/3" Progressive Scan CMOS
- Video Resolution: 1920 x 1080p
- IR Night Vision Distance: MAX. 10 meters(32.81ft)
- Smart Human Motion Detection
Brand: EZVIZ
Product Model: CS-H8C (4G)
Return & Warranty
Market Ratings
Ship On Time
99%
Chat Response
100%
Specification
| Model | CS-H8C |
|---|---|
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F1.6, viewing angle: 46° (Vertical), 86° (Horizontal), 102° (Diagonal) 6mm@ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 62° (Diagonal) |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
| Video & Audio | |
| Max Resolution | 2304 × 1296 |
| Frame Rate | Max:30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 3 Mbps |
| Network | |
| Frequency Bands |
IN LTE-FDD：B1/B3/B5/B8 IN LTE-TDD：B34/B38/B39/B40/B41 EU LTE-FDD：B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD：B2/B3/B4/B5/B7/B8/B28/B66 |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm | Human Motion Detection,Vehicle Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD Card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V/1A |
| Dimensions | 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch) |
| Packaging Dimensions | 140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch) |
| Weight |
Net Weight: 513.8 g (18.12 oz) With Package: 796.7 g (28.1 oz) For EU Standard Version |
