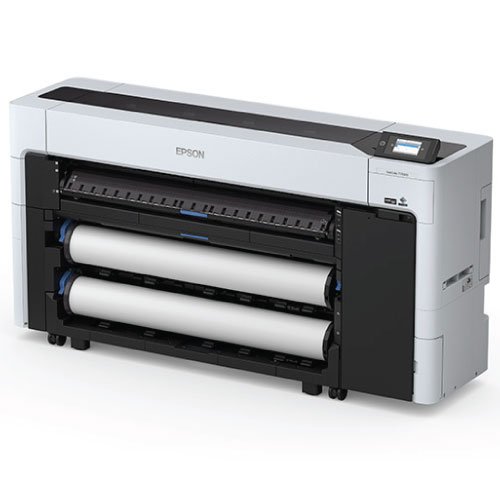

C11CH83403, EPSON SC-T7730D (44 Inch) Large Format Printer, 1YW

Item

Product Description

Brand

EPSON

Model

SureColor SC-T7730D

Country of Origin

JAPAN

Country of Manufacture

Indonesia/Vietnam/China/Philippine/Thailand

Printer Width

44 inch

Printing Technology :

Print Head

Precision Core Micro TFP Printhead

Nozzle Configuration

9,600 Nozzles (400 nozzles x 24 channels x 1 head)

Maximum Resolution

2,400 x 1,200 dpi

Minimum Ink Droplet Volume

3.5pl

Line Accuracy

±0.1% or ±0.26mm

Minimum Line Width

0.08mm*1 (0.02mm*2)

Print Speed:

CAD A1 Landscape

Plain Paper 300x600dpi Line Draw/Draft: 16s, 600x600dpi Line Draw/Speed: 23s

CAD A0

Plain Paper 300x600dpi Line Draw/Draft: 28s, 600x600dpi Line Draw/Speed: 43s

Poster B0

Plain Paper 300x600dpi EPSON Vivid/Speed: 46s

B0

Plain Paper: 35s (Draft), 46s (Speed), 258s (High Quality), Premium Glossy Photo Paper 170gsm: 152s (Speed), 281s (Quality), 614s (Max Quality)

Ink System:

Ink Type

UltraChrome XD3 Pigment Ink

Colors

Cyan, Magenta, Yellow, Red, Matte Black, Photo Black (6 ink colors)

Paper Handling:

Paper Path

Roll (Double Roll), Cut Sheet (Manual Feed), Poster Board (Manual Feed)

Maximum Roll Diameter/Weight

2/3” Core, Max. 170mm/12.5kg

Paper Width

Roll: 254 – 1,118mm Cut Sheet: 203 – 1,118mm, Poster Board: 0.8mm – 1.5mm

Borderless Width Sizes (mm)

118, 1030, 914, 841, 728, 700, 610, 594, 515, 508, 500, 432, 406, 356, 330, 300, 254

Connectivity:

Interface

USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n)

Wi-Fi Direct

Wi-Fi Direct (Simple AP)

USB Host

Yes*

USB Direct Print

Supported Format: PDF, TIFF, JPEG, HP-GL/2, HP RTL

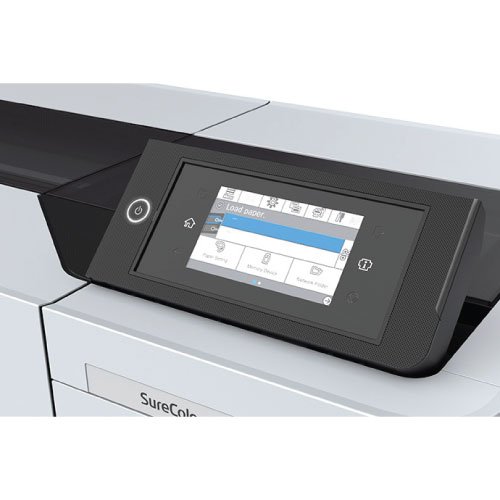

Control Panel

4.3” Touch Screen

Printer Languages

ESC/R raster, HP-GL/2*5, HP RTL*5, Adobe PostScript 3, Adobe PDF 1.7

Mobile Solutions

Epson Smart Panel, Apple AirPrint

Memory

4GB + 960GB (Option SSD)

Operating System:

Windows XP (32bit/64bit) / Vista / 7 / 8 / 8.1 / 10 / 11 Windows Server 2003 SP2 or later / 2008 / 2012 / 2016 / 2019 / 2022 Mac OS X 10.6.8 or later

Electrical Specification:

Voltage

AC 100-240V 50/60Hz

Rated Current

3.4-1.6A

Power Consumption

Operating: Approx. 70W / Ready: Approx. 32W / Sleep: Approx. 2.0W Standby: Approx. 0.3W

Environmental Conditions:

Temperature

Operating: 10°C to 35°C, Storage: -20°C to 40°C

Humidity

Operating: 20% to 80% (no condensation), Storage: 5% to 85% (no condensation)

Sound Pressure

Operating: Approx. 50dB(A)

Sound Power

Operating: Approx. 6.6dB(A)

Dimensions & Weight:

Dimension (W x H x D)

1,848 x 975 x 829 mm

Weight

Approx. 155 kg

What’s In the Box

Printer, Initial ink cartridge, AC power cable, Setup guide, Software CD-ROM, Maintenance box

Warranty

One Year.
