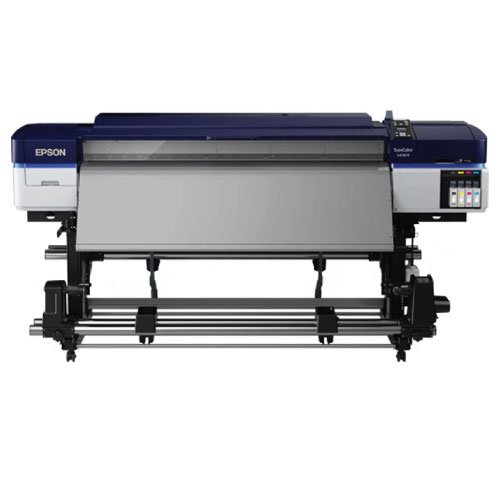

C11CE44403C1, EPSON SC-S40670 (64 Inch) Large Format Printer, 1YW
| Login to See Price | |
| Product Model: | SC-S40670 |
| Brand: | EPSON |
Key Features
- Exceptional quality at low cost of ownership
- Up to 64-inch width and 1.0 mm thickness media
- Print up to 58.4 m2/h
- Epson UltraChrome GS3 ink Technology - Greenguard Gold certified for low chemical emissions
- 1-year limited warranty
- BLI’s 2018 Wide Format Picks1: Outstanding Entry-Level CMYK Eco-Solvent/Latex 54"/64" Printer
|
Item |
Product Description |
|
Brand |
EPSON |
|
Model |
SureColor SC-S40670 |
|
Country of Origin |
JAPAN |
|
Country of Manufacture |
Indonesia/Vietnam/China/Philippine/Thailand |
|
Printer Width |
163 cm / 64 inch |
|
Printing Technology : |
|
|
Print Head |
PrecisionCore™ TFP® Printhead |
|
Nozzle Configuration |
360 x 2 nozzles each colour (x4) |
|
Maximum Resolution |
1440 x 1440 dpi |
|
Minimum Ink Droplet Volume |
4.2 pl |
|
Print Speed: |
|
|
Max Speed - 1 pass |
Up to 58.4 m2/h (360 x 720 dpi) |
|
High Speed - 2 pass (Billboard) |
Up to 29.4 m2/h (720 x 720 dpi) |
|
Production 1 - 3 pass |
Up to 20.8 m2/h (720 x 720 dpi) |
|
Production 2 - 4 pass |
Up to 16.6 m2/h (720 x 720 dpi) |
|
Production 3 - 6 pass |
Up to 11.0 m2/h (720 x 1440 dpi) |
|
High Quality - 8 pass |
Up to 8.6 m2/h (720 x 1440 dpi) |
|
Max Quality 1 - 12 pass |
Up to 4.7 m2/h (1440 x 1440 dpi) |
|
Max Quality 2 - 16 pass |
Up to 3.5 m2/h (1440 x 1440 dpi) |
|
Max Quality 3 - 24 pass |
Up to 2.6 m2/h (1440 x 1440 dpi) |
|
Ink System: |
|
|
Ink Type |
Epson UltraChrome™ GS3 ink technology |
|
Colors |
4 colours - Cyan, Magenta, Yellow, Black |
|
Ink Capacity |
700 mL ink cartridge |
|
Paper Handling: |
|
|
Roll Diameter / Weight |
Rear roll feed (2" / 3" core with max 250 mm diameter and up to 45 kg), Auto take-up reel |
|
Printable Area |
Max printing width: 1616 mm; Side Margin: 5 mm (both sides), 10 mm with media holding plates |
|
Media Width |
300 to 1626 mm |
|
Media Thickness |
Up to 1 mm |
|
Heaters |
Pre- and Platen-heater (30 to 50°C); After-heater (30 to 55°C) |
|
Control Panel |
6.9 cm (2.7") colour LCD |
|
Connectivity: |
|
|
Interface |
Hi-speed USB 2.0, 100BASE-TX / 1000BASE-T |
|
Printer Languages |
Standard: ESC/P raster |
|
Printer Drivers |
NA |
|
Memory |
512 MB main + 128 MB network |
|
Software |
Standard: CD Installer, Communication Driver, EPSON Manuals Launcher, Operators Guides, General Information, Epson Control Dashboard, Epson Net Config, Epson Net Setup, Epson Net Print, Epson Software Updater |
|
Other Features |
Auto Head Alignment Technology (Media feed and Bi-directional), Auto Nozzle Check System, Mail Report System, Custom Paper Backup |
|
Power and Operating Requirements |
|
|
Power Requirements |
Input voltage AC 100-240 V, 50/60 Hz |
|
Power Consumption |
Operating: Approx. 480 W; Standby: Approx. 330 W with heater ON; Sleep: Approx. 12 W; Power Off: Less than 1.5 W |
|
Recommended Operating Temperature and Humidity |
15 - 35°C; 20 - 80 % RH (non-condensing) |
|
Printer Dimensions |
|
|
Dimensions |
2,620 x 880 x 1,338 mm (W x D x H) (storage) |
|
Weight |
279 kg (without ink) |
|
What’s In the Box |
Printer, Initial ink cartridge, AC power cable, Setup guide, Software CD-ROM, Maintenance box |
|
Warranty
|
1 (One) year.
|
