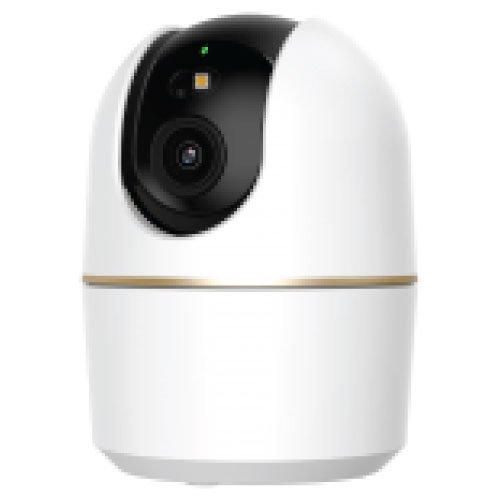

DAHUA DH-IPC-H3AS 3MP 2K DUAL LIGHT,MULTIFUNCTIONAL,TWO-WAY AUDIO, PATROL MODE, POWER TYPE-C WiFi CAMERA

Camera

Image Sensor

1/3.2" CMOS

Max. Resolution

2304 (H) × 1296 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Illumination Distance

Up to 20 m (65.62 ft) (IR)
Up to 10 m (32.81 ft) (Warm light)

Illuminator On/Off Control

Auto

Illuminator Number

1 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0° to 355°
Tilt: -5° to +80°

Lens

Max. Aperture

2.8 mm: F2.0

Field of View

2.8 mm: H: 99°; V: 55°; D: 117°: with 8x Digital Zoom

Video

Video Compression

H.265; H.264

Video Frame Rate

Main stream: 2304 × 1296@15 fps, max up to 25 fps;
Sub stream: 640 × 360@15 fps, max up to 25 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Resolution

3 MP (2304 × 1296); 1080p (1920 × 1080); VGA (640 × 480)

Video Bit Rate

H.265: 32 kbps–4096 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

Yes

Image Rotation

0°/180°

Intelligence

Human Detection

Pet Detection

Support the classification and accurate detection of human

Support the classification and accurate detection of Pet

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

G.711a

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n/a/ac/ax 2.4 G & 5 G, EIRP≤20 dBm@2400–2483.5 MHz (CE), EIRP≤23 dBm@5150–5250 MHz (CE), EIRP≤20 dBm@5250–5350 MHz (CE), EIRP≤27 dBm@5470–5725 MHz (CE), EIRP≤14 dBm@5725–5875 MHz (CE)

Wi-Fi Pairing

Storage

Bluetooth pairing

Micro SD card (up to 256 GB)

Management Software

DMSS

Mobile Client

iOS;Android

Certification

Certifications

CE

Power

Power Supply

5 VDC 1 A

Power Consumption

Basic: 1.565 W (5 VDC);
Max.: 3.72 W (5 VDC) (WDR + intelligence + warning sound + warning light)

Environment

Operating Temperature

–10 °C to +45 °C (+14 °F to + 113 °F)

Operating Humidity

≤95% (RH), non-condensing

Structure

Casing Material

Plastic

Product Dimensions

Φ77.8 mm × 112.1 mm (Φ3.06" × 4.41")

Net Weight

0.2 kg (0.44 lb)
