CBS110-24T-EU # CBS110 Unmanaged 24-port GE, 2x1G SFP Shared
| Login to See Price | |
| Product Model: | CBS110-24T-EU |
| Brand: | CISCO SMB |
Key Features
- Model: CBS110-24T-EU
- 24 x 10/100/1000 + 1 x Gigabit SFP (uplink)
- Rack-mountable
- Forwarding Rate: 83.33 Mpps
- Plug-and-play Design
| Main Feature | ||
| Network Standard | - IEEE 802.1p - IEEE 802.3 - IEEE 802.3ab |
|
| Data Transmission Rate | Switching capacity: 48 Gbit/s Forwarding rate: 35.7 Mpps MAC address table: 8192 entries Number of queues: 4 Jumbo frames support: Yes Jumbo frames: 9216 |
|
| MAC Address Table | MAC address table: 8192 entries | |
| Hardware Features | ||
| Interface | Basic switching RJ-45 Ethernet ports quantity: 24 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity: 24 Combo SFP ports quantity: 2 |
|
| Power Supply | Power supply included: Yes AC input voltage: 110 - 240 V AC input frequency: 50/60 Hz |
|
| Dimensions | - Width: 279 mm - Depth: 170 mm - Height: 44 mm |
|
| Weight | 1.56 kg | |
| Manufacture Warranty | ||
| Warranty | 1 Year Warranty | |

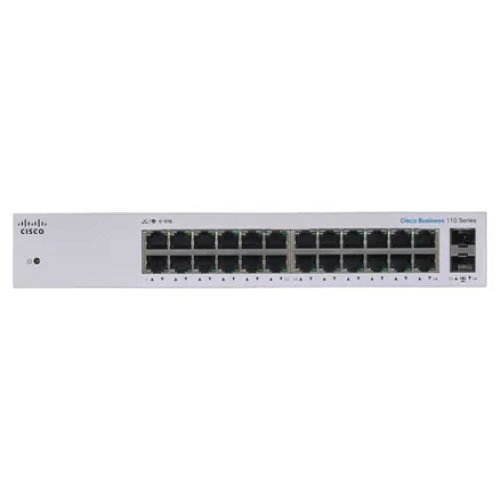

Cisco CBS110-24T-EU 24-Port Gigabit Unmanaged Switch with 2x SFP Uplink
The Cisco CBS110-24T-EU is a reliable and cost-effective unmanaged network switch designed for small offices, startups, and growing business environments. With 24 Gigabit Ethernet ports and 2 shared SFP uplink ports, it delivers stable and high-speed connectivity for multiple devices such as PCs, printers, IP cameras, and access points.
Built for plug-and-play simplicity, this switch requires no configuration, making it ideal for users who need quick deployment without network complexity. Its robust switching capacity of 48 Gbps and forwarding rate of 35.7 Mpps ensure smooth data transmission across the network, even under heavy workloads.
The CBS110 series supports Jumbo frames up to 9216 bytes, improving efficiency for large file transfers and enhancing overall network performance. With IEEE networking standards compliance, it ensures compatibility with a wide range of devices and network infrastructures.
Designed with a compact and durable metal chassis, the switch is suitable for both desktop and rackmount installation, offering flexibility for different workspace setups. It operates efficiently within standard temperature and humidity ranges, ensuring long-term reliability.
